Product Description
SJ-OCC-SS-1728 Outside Plant Fiber Cable Cross Connect Cabinets
Stainless Steel fiber optic Cross Cabinet.
fiber optic Cross Cabinet is optical equipment that is especially designed for outdoor optical nodes in access network. The installation location is nodes between Feeder cable (backbone fiber-optical cables) and Distribution cable.
Used as the interface device at the splice of the trunk cable and wiring cable in the access network. It is mainly used for the connection, distribution and scheduling of the outdoor cables, and it could actualize the weld, terminal, storage and scheduling of the optical fibers.
This cabinet is widely used in FTTX access network. It provides splice, storage, termination, splitting, customer cable routing functions etc., without cables patching, which effectively solves the problems resulted by traditional distribution devices, less adaptors and patch cords, less loss rate and defect points, safer network ,more capacity, convenient for cable management and upgrading, cost saving, and promoting the development of optical fibers.
Features:
1. Excellent performance such as: water-proof, damp-proof, anti-erosion, anti-strike. Able to withstand abrupt climate change and extreme environment
2. Capacity (1728 Fibers) can be flexibly customized as required
3. Installation is quick and convenient
4. Built-in direct splice unit is capable for providing direct connection function.
5. Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
6. with secure and reliable fastening and grounding protection devices for the optic fiber
7. Applicable to strap-shaped and non-strap shaped fibers
8. Unique patent for the design of the door key, can never be easily broken
Main Technical Parameters:
(1)Operating temperature: between -40°C and +60°C
(2)RH (relative humidity):95 %( at temperature: +40°C)
(3)Atmospheric pressure: between 70kpa and 106kpa
(4)Isolation resistance: ≥2X10000M/500V(DC)
(5)Anti-voltage strength: ≥3000V(DC)1min,no breakdown
(6)Strong heat-proof performance, because the cabinet is made from high strength unsaturated polyester glass fiber reinforcement material called SMC
(7)Static load-bearing capacity: 980N for the cover, 980N for side surface, 200N for door hinge
(8)Meet to IP 65
Specification:
Model NO.:SJ-OCC-SS-1728
Dimension(HxWxD)mm:1820X1260X640
Capacity:1728 Fibers
Material:201/304 Stainless Steel
Comments: 1. Overall dimension could be custom made by requirement.
2. Configuration of Box can be customized according to customer requirement.

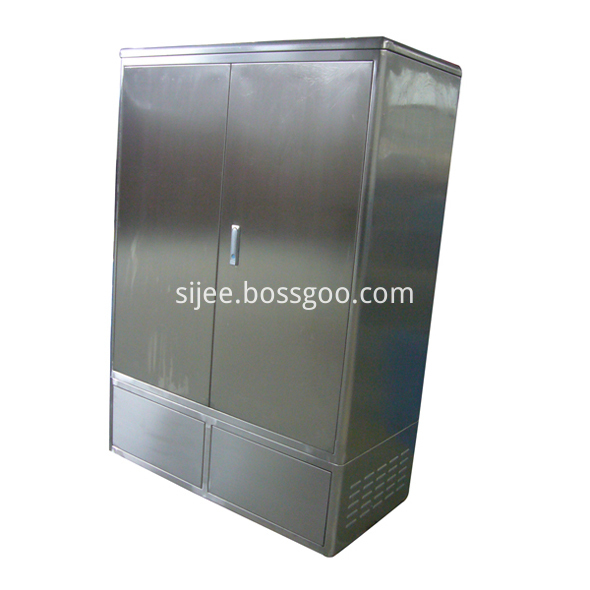

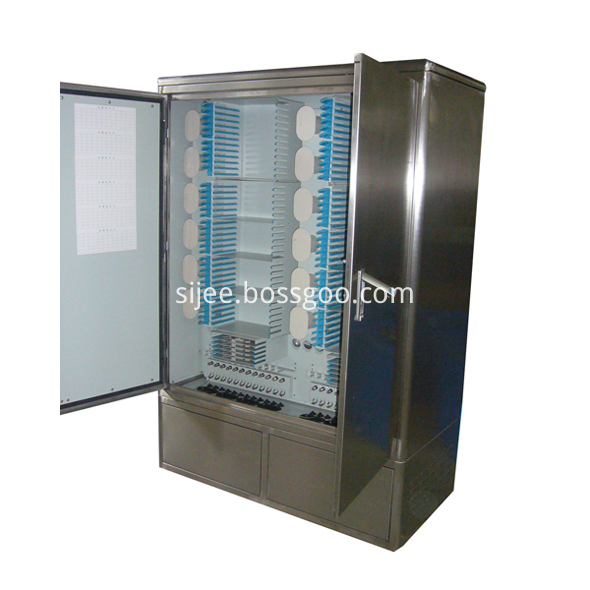

View of product:
More Product:
Sheet Metal Workshop:
Certification:
You are manufacturer or trading company?
We are 15-year-experience manufacturer of sheet metal fabrication,handle almost anything from metal. You can get quotation of direct factory which give you advantage in target market.
What is the lead time for prototype? Do you help repairing the parts of the nonconforming sample?
Normally 5 days for prototyping, and we help with sample repairing.If sample is non-conformity,we can also make second sample for free to improve the quality, client just need to pay the freight.
You factory is a huge one?
We have an area of 30000 square meters for production & assembly,and now have over 225 employees.Assembling & packaging place covers over 5000 square meter,clients can save the cost of assembly in target market.
What is your brand service?
High quality stainless steel fabrication & precision pressing & powder coating are our brand work.
How to start cooperation with you?
Type A:Clients send us technical drawing>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order
Type B:Clients send us ideas or sample>technical drawing design>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order
