Product Description
SJ-OCC-SS-1152 Outside Plant Fiber Cable Cross Connect Cabinets
This product is designed for the connection between the Optical fiber cable and the main points, and it is a kind of port device. It has the function of direct or indirect connection, coiling, storage, and dispatching on the fiber cable .
Cabinets are made of double side wiredrawing stainless steel, with the protection grade reaching IP65. Those can endure climate changes and adverse environment. All front access. Modular design; Flexible configuration and quick installation ; Suitable for ribbon and no ribbon optic fibers;30 °oblique installation of adapters, preventing eyes from laser's hurts and ensuring the fiber bending radius; Suitable for inserting installation of SC, FC,ST(additional flange) adapters; The bending radii are ensured to be more than 40mm in anyplace. Reliable fiber introduction, grounding and fixing; Swpa convenient; Suitable fiber integrated and optical fibers; A special suspension mechanism is designed to enable ground mounted, wall-mounted or aerial for users `requirement
Environment condition:
Environmental temperature:-25℃~+60℃
Relative humidity:＜95%(When the temperature is below 40℃)
Atmospheric pressure:70~106KPa
Transportation Temperature: -40℃~+60℃
The dew-proof, the rainproof, the dustproof and thief proof are up to YD/T988-1998 standard.
The requirements of the function:
1. The fiber fixation and protection function
Fiber inlet, fixation and protection device should be provided. The fibers will be protected from being damaged when they are let in and fixed in the frame through these devices. The metal parts of the cables are insulated from the machine. The metal jacket of the cable & the reinforced core should be connected with the high voltage protective earthing device after being fixed;
2. The termination & connection function
Termination device should be provided, which is used for the connection operation, construction, installation & maintenance. It could fix and protect the connector and make sure the connector even but not displaced and free from external influence, guarantee the coiled fibers and pigtails not damaged;
3.The protection of the fibers and pigtails The fibers are protected with protective device after being peeled and then will be fixed and let in to fiber termination device;
4. Capacity The capacity of each cabinet and each unit (according to the quantity of the adapters) should be regulated. The termination device, the coiling device for pigtails, adapter holders, pigtail & adapters should be compatible when fully collocated.
Specification:
Model NO.:SJ-OCC-SS-1152
Dimension(HxWxD)mm:1500X1260X660
Capacity:1152 Fibers
Material:201/304 Stainless Steel
Comments: 1. Overall dimension could be custom made by requirement.
2. Configuration of Box can be customized according to customer requirement.

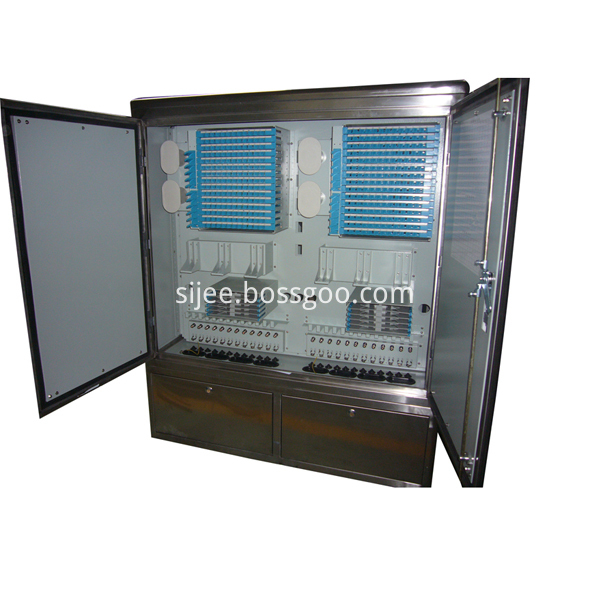

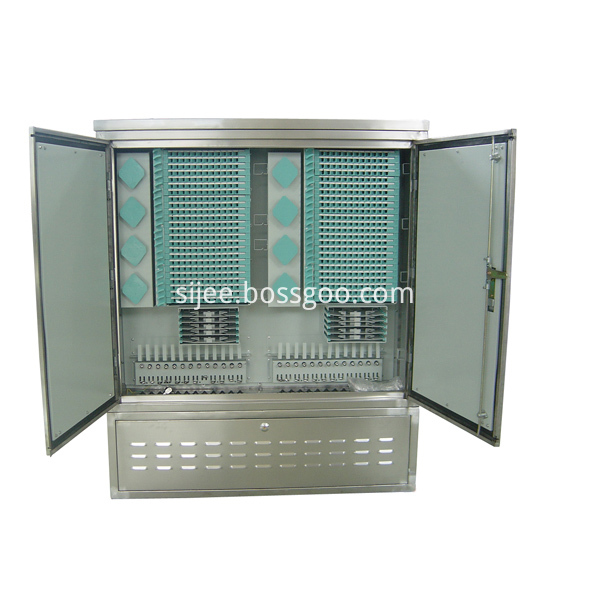

View of product:
More Product:
Sheet Metal Workshop:
Certification:
