Product Description
SJ-OFOC-02 Outdoor Fiber Optic Enclosure/ Wall Mounting Enclosure
Material: Box & Door : sheet steel 1.2mm-1.5mm Mounting plate: Zinc-coated plate 1.5mm-2.0mm
Surface Treatment: Phosphating, Electrostatic powder spraying in orange-peel or plain finish
Color:Color can be customized according to customer requirement.
Supply includes: Box of all-round,Single door for Width<1000mm, double-door for othersDoor hingeLock (Cam lock, Switch lock, 3-point lock are available)Zinc-plated mounting plateFoamed-in door sealing gasket
Optional Accessories: Perforated mounting strip, Mounting plate, Wall fixing brackets Lock (According to customer requirements), Gland plate, Rain canopy, Support rails Mounting clip for support rail For more accessories.
Protection degree: IP 66 Impact resistance: IK10
Package: Product is packed in carton or based on customers' request
Specification:
Model NO.:SJ-OFOC-02
Dimension (H×W×D)MM:965X620X300
Material:Cold-rolled Steel or Stainless Steel.
Installation:Wall Mounting or Ground Mounting
Comments: 1. Overall dimension could be custom made by requirement. 2. Configuration of Box can be customized according to customer requirement.
FTTB Cabinet /EPON/GPON Broadband Data Integration Cabinet
ONU Cabinet/ Corridor Integrated Access Cabinet/ outdoor Access Cabinet
Broadband Data Integration Cabinet is specifically designed for last sector of FTTH installation , the cabinet brings a flexible solution for safely containing optical converter,optical fiber terminal block and optical transmitter and other electronic equipments.
access cabinet is normally installed in the corridor of living building,.It equips with a strong venting system inside, the hermetic shell is designed according to CE standard. The cabinet contains various of batteries,electric power and all kinds of electric equipments.It has capacious space to contain power area,distributing&splicing area and equipment area. The cabinet meets the requirements of IP55 protection level.
Double-door design,convenient for installation&maintenance
Adopt 200L 110 High-frequency module,convenient for cable forming and maintenance
Capacious space for the installation of CATV equipment
Flexible configuration for clients' choices,simple operation and easy for maintenance
Fiber storage capacity up to 12 cores,and network panel 6-48 ports
Shutter design for cabinet window,in favor of the heat dispersing&venting of active equipments
Using Cold Rolled Steel material,and surface treatment of deareasing,rustproof,phosphoric spraying,exquisite design with precise dimension and craftsmanship.
Posses voice frequency cable distribution and equipment power access safety socket
Burglar-proof lock system
Standard configuration:
Cabinet (Earthing Wire, lock, cable fastner and dust-proof cotton included), Power strip, Air switch, Splicing tray, distribution module bracket, Krone module, Accessories bag, wiring mounting bracket.
Optional configuration:
Surge protector(thunder protector), Fan, Heather, Temperature Sensor.

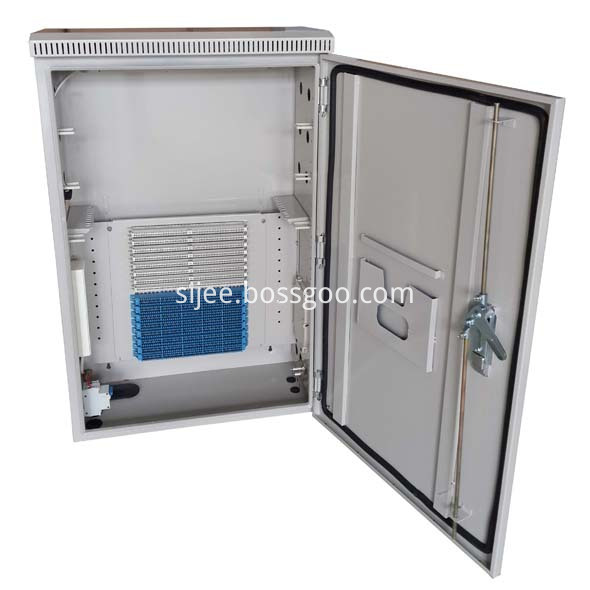

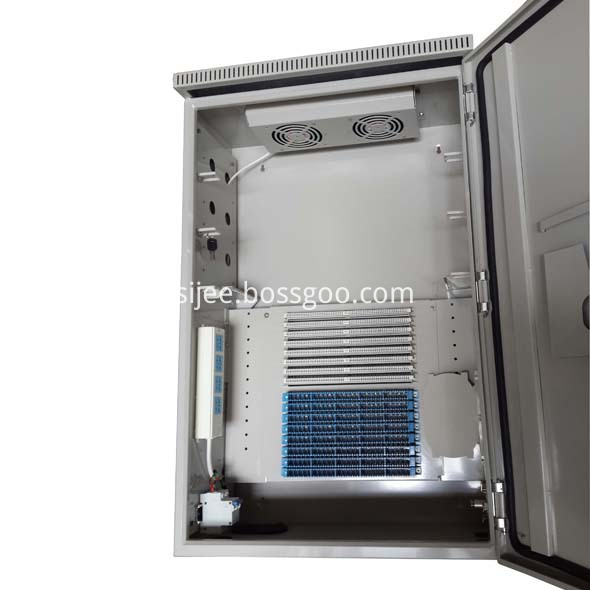

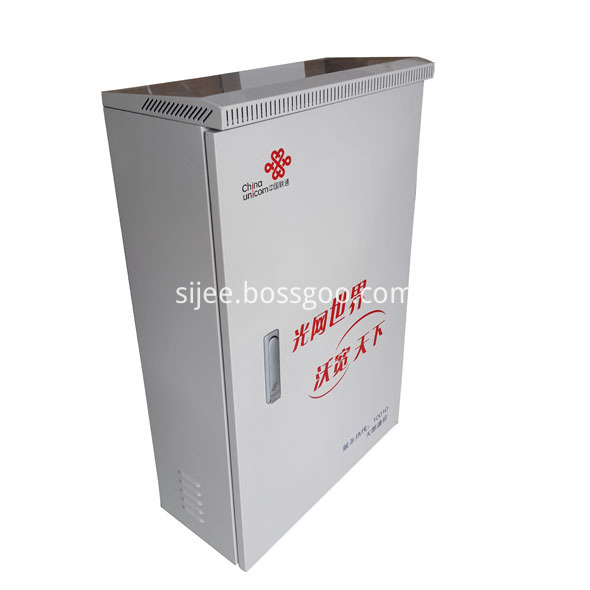

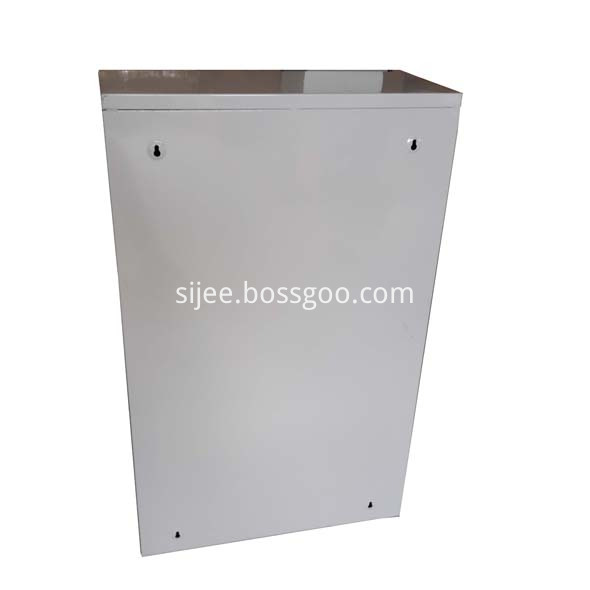

View of product:
More Product:
Sheet Metal Workshop:
Certification:
You are manufacturer or trading company?
We are 15-year-experience manufacturer of sheet metal fabrication,handle almost anything from metal. You can get quotation of direct factory which give you advantage in target market.
What is the lead time for prototype? Do you help repairing the parts of the nonconforming sample?
Normally 5 days for prototyping, and we help with sample repairing.If sample is non-conformity,we can also make second sample for free to improve the quality, client just need to pay the freight.
You factory is a huge one?
We have an area of 30000 square meters for production & assembly,and now have over 225 employees.Assembling & packaging place covers over 5000 square meter,clients can save the cost of assembly in target market.
What is your brand service?
High quality stainless steel fabrication & precision pressing & powder coating are our brand work.
How to start cooperation with you?
Type A:Clients send us technical drawing>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order
Type B:Clients send us ideas or sample>technical drawing design>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order
