Product Description
SJ-ODF-02 Fiber Optic Distribution Frame ODF
Optical Fiber Distribution frame used in optical fiber communication system midgame end backbone fiber optic cable into the client and allocation, can conveniently realize links, allocation and scheduling of optical fiber line.
Features:
1. Modular design, unit box set optical fiber splicing, disk storage, wiring as a whole
2. Each unit can be extracted separately, so that the components of different types of products are universal and interchangeable
3. Independent lead-in/out of optical cables, fiber pigtails and patch cords, facilitating patch cords management
4. Closed sheet-metal structure, large capacity, high density, space saving
5. Can install variety of adapters, such as FC or SC
6. In order to ensure superiority and reliability of the product, all equipments are tested by professionals
7.This type of ODF is used for the equipment end to end
Working requirements:
Work temperature: -5 to +45°C
Relative humidity: ≤85% (+30°C)
Atmospheric pressure: 80-106kPa
Storage temperature:- 25 to +55°C
Technical requirements:
Protection level: IP65
Nominal work wave-length: 850, 1310, 1550Nm
Insertion loss of optical fiber connector: ≤0.5dB
Active return loss of optical fiber connector: FC/PC>40dB, FC/UPC>50 dB
Withstand voltage between high voltage grounding protection device and frame: ≥3000V (DC)/1 minute (no breakdown, no arcing)
Isolation resistance (between frame and protection grounding: ≥100mΩ/500V
Specification:
Model NO.:SJ-ODF-02
Dimension(HxWxD)mm:2200X800X400 2200X800X450; 2200X800X600
Capacity:648Fibers
Comments: 1. Overall dimension could be custom made by requirement. 2. Configuration of Box can be customized according to customer requirement.

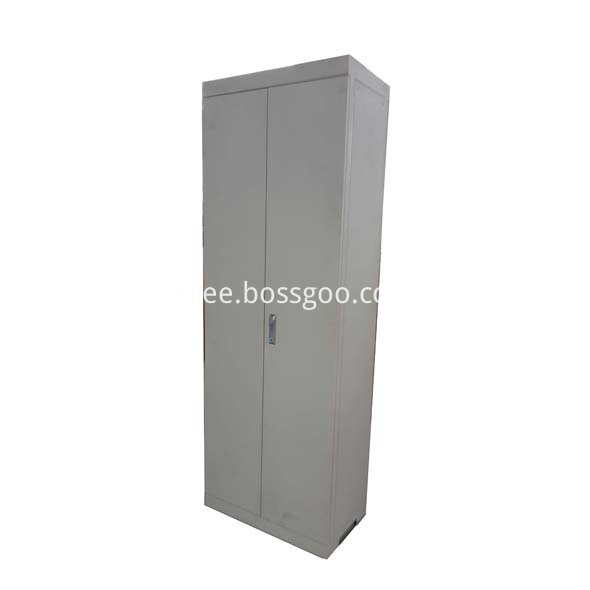

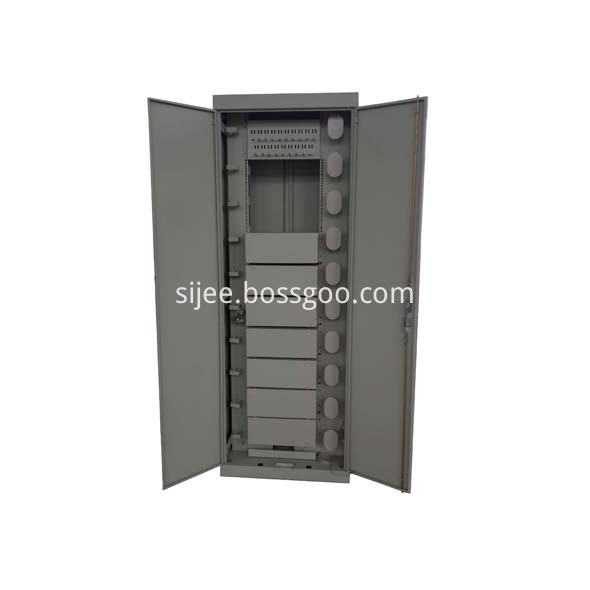

View of product:
More Product:
Sheet Metal Workshop:
Certification:
You are manufacturer or trading company?
We are 15-year-experience manufacturer of sheet metal fabrication,handle almost anything from metal. You can get quotation of direct factory which give you advantage in target market.
What is the lead time for prototype? Do you help repairing the parts of the nonconforming sample?
Normally 5 days for prototyping, and we help with sample repairing.If sample is non-conformity,we can also make second sample for free to improve the quality, client just need to pay the freight.
You factory is a huge one?
We have an area of 30000 square meters for production & assembly,and now have over 225 employees.Assembling & packaging place covers over 5000 square meter,clients can save the cost of assembly in target market.
What is your brand service?
High quality stainless steel fabrication & precision pressing & powder coating are our brand work.
How to start cooperation with you?
Type A:Clients send us technical drawing>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order
Type B:Clients send us ideas or sample>technical drawing design>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order
