Product Description
SJ-ODF-24 Fiber Optic Distribution Frame ODF Box
Rack-mount Fiber Optic Distribution Frame
Rackmount Fiber Optic Distribution Frame is modulized design with drawabletrays inside and cold-rolled steel box. It could be pre-installed with various kinds of fiber optic adapters and pigtails.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
Features:
Standard size, light weight and reasonable structure Splice tray inside changeable
Can be used in 19'', 23'' standard distribution frame
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
Front mark on the plate is easy for identification and operation 48C, 144C optional, with or without fiber optic pigtails and adapters
Easy for management and operation
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Parameters:
Core Count:24/36/48/72/144 cores
Height:2U/3U/4U/5U/7U
Material;spcc cold rolled steel 1.2mm
19''rack mount
Specification:
Model NO.:SJ-ODF-24
Dimension(HxWxD)mm:90X485X285
Capacity:24 Fibers
Comments: 1. Overall dimension could be custom made by requirement. 2. Configuration of Box can be customized according to customer requirement.

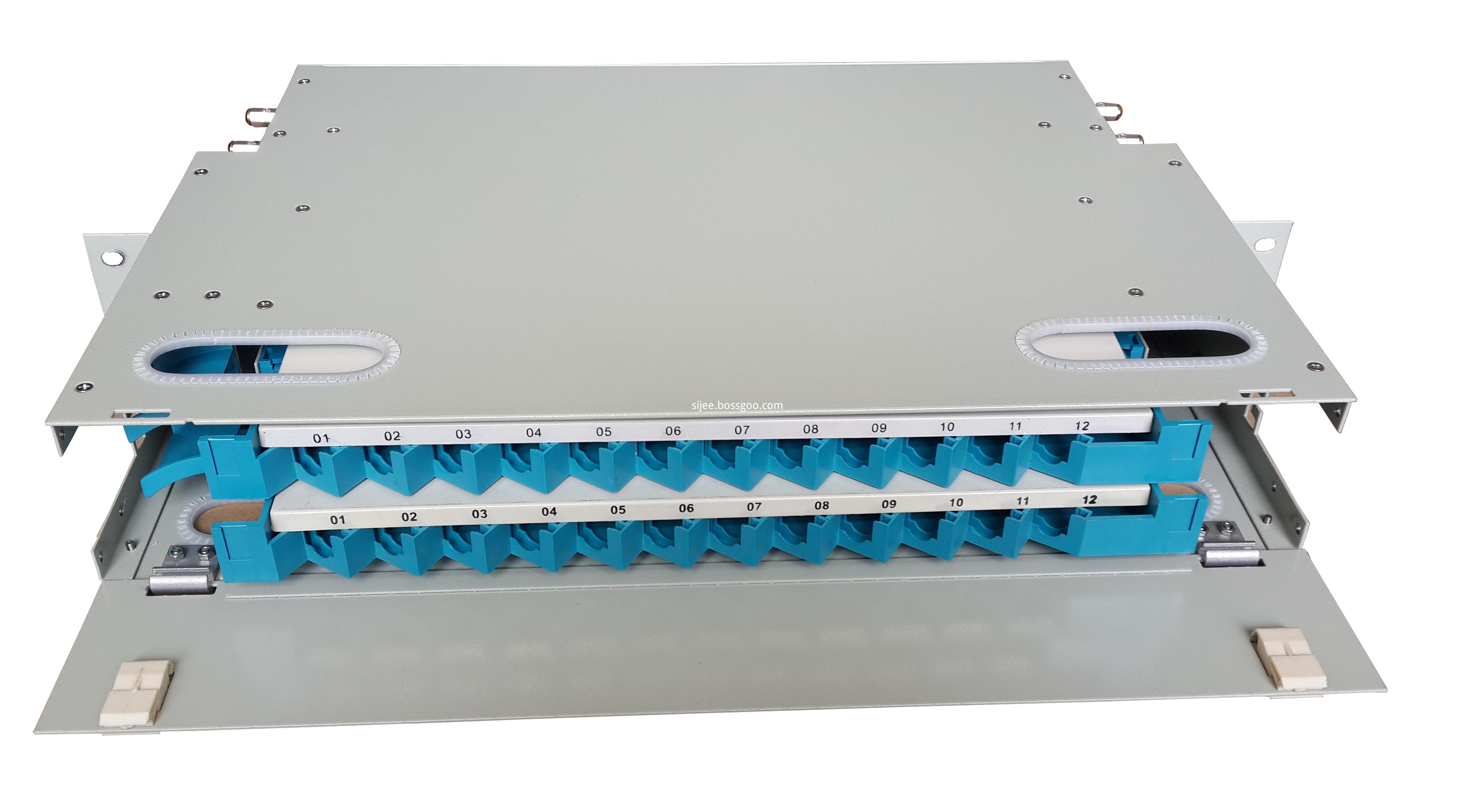

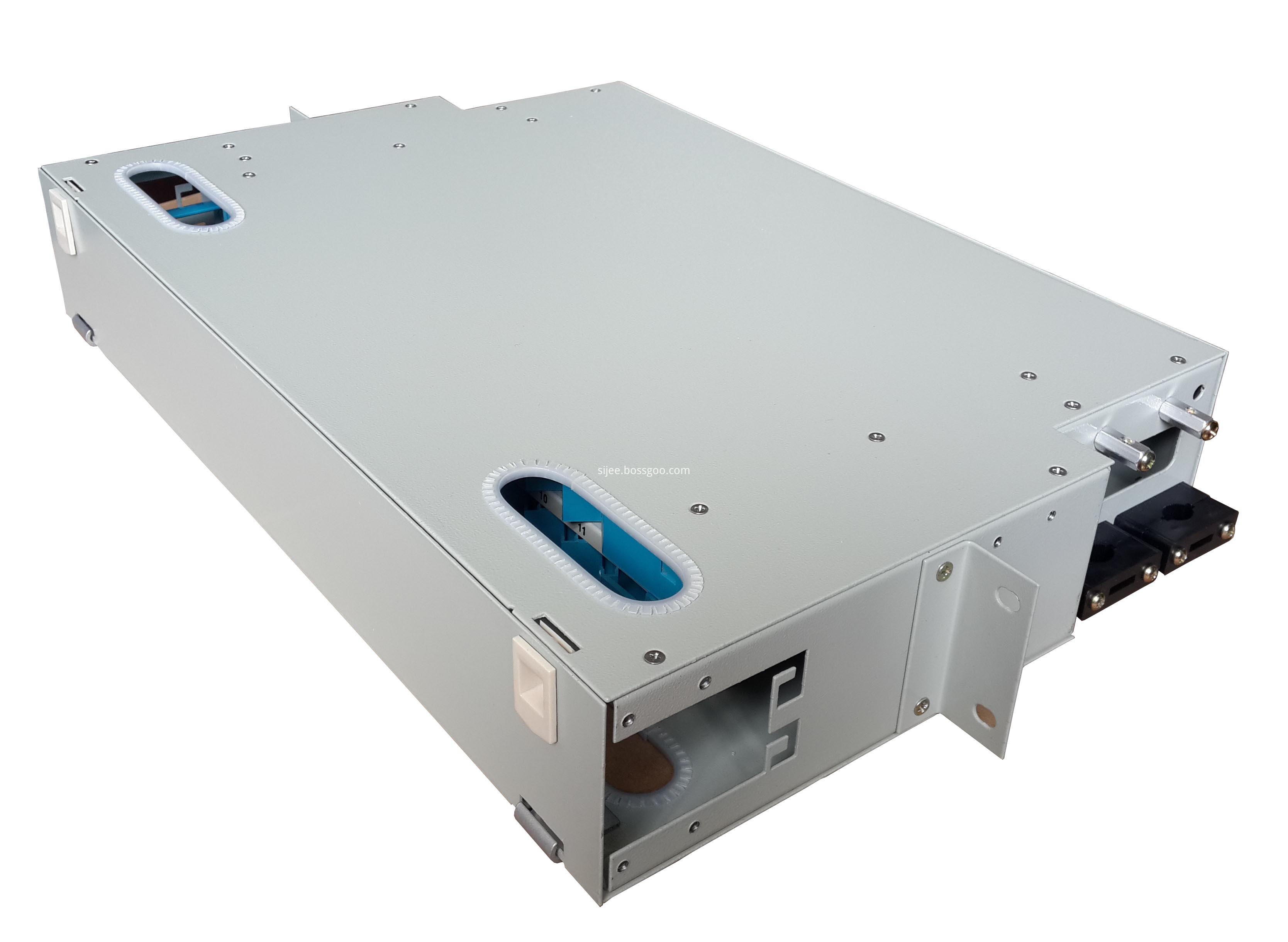

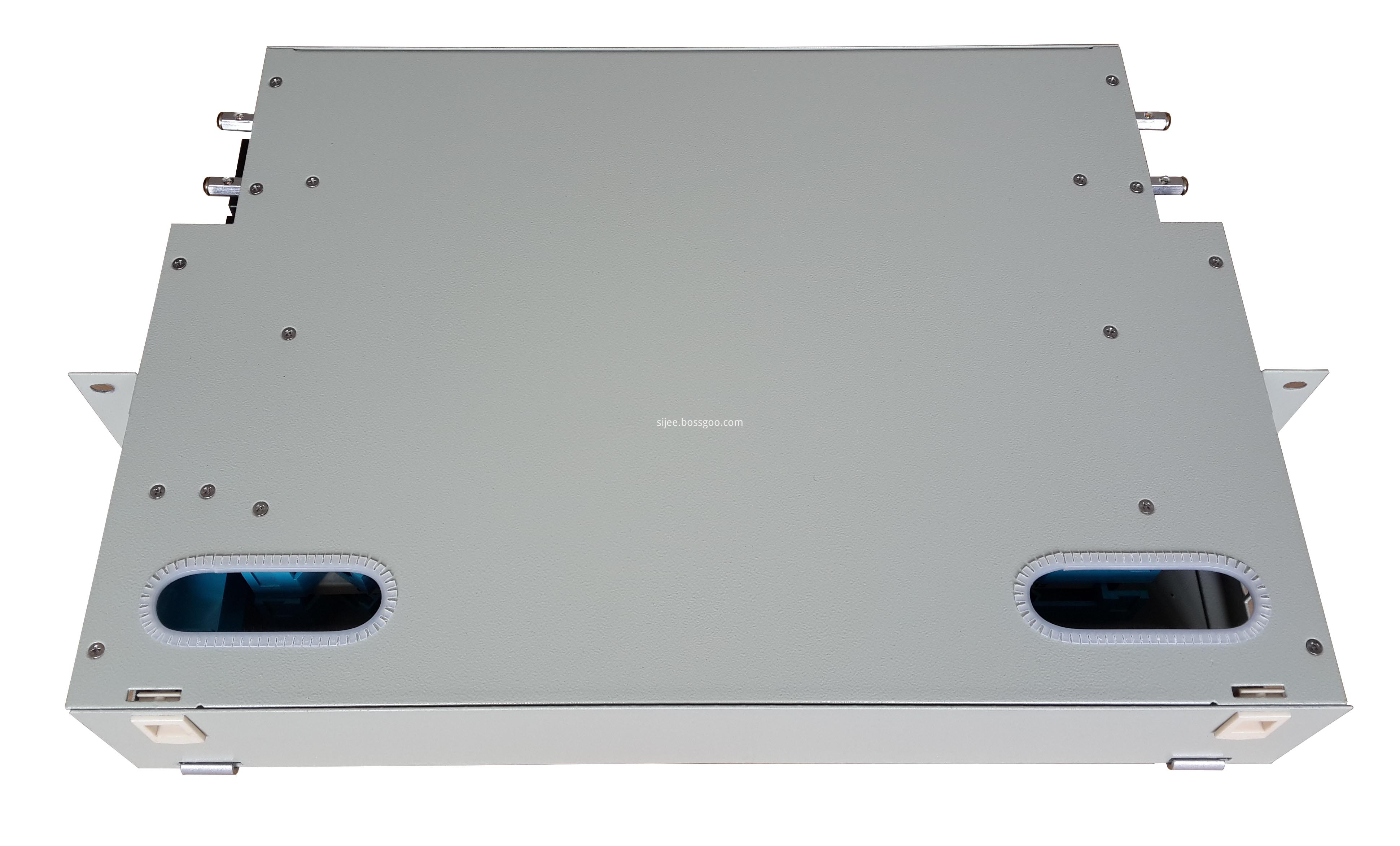

View of product:
More Product:
Sheet Metal Workshop:
Certification:
You are manufacturer or trading company?
We are 15-year-experience manufacturer of sheet metal fabrication,handle almost anything from metal. You can get quotation of direct factory which give you advantage in target market.
What is the lead time for prototype? Do you help repairing the parts of the nonconforming sample?
Normally 5 days for prototyping, and we help with sample repairing.If sample is non-conformity,we can also make second sample for free to improve the quality, client just need to pay the freight.
You factory is a huge one?
We have an area of 30000 square meters for production & assembly,and now have over 225 employees.Assembling & packaging place covers over 5000 square meter,clients can save the cost of assembly in target market.
What is your brand service?
High quality stainless steel fabrication & precision pressing & powder coating are our brand work.
How to start cooperation with you?
Type A:Clients send us technical drawing>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order
Type B:Clients send us ideas or sample>technical drawing design>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order
